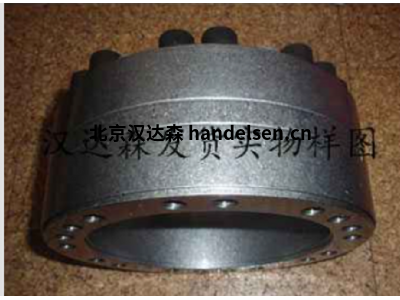

RINGFEDER锁紧组件简介
| 高轲 QQ：2850590595 手机：18518179343 电话：010-64717020-172 传真：010-84786709-666 邮件：sales62@handelsen.cn |
 |
RINGFEDER ®锁紧组件设有带自释放锥形双锥形止推环。它们桥接相对较大的装配间隙，易于安装，调节或拆卸，但不自动定心。通常需要预先定心的毂部分。
特点
简洁的设计，特别适合空间有限的应用。锁定组件RfN 7012可以补偿较小的公差偏差并可以补偿较小的安装误差。
较大的传递力和力矩 –多个锁定组件RfN 7012可以一个接一个放置。增加了可传递的扭矩和轴向力-请在这方面咨询我们的技术专家。
应用范例
链轮
杠杆
滑轮
滑动齿轮机构
皮带鼓
行走轮
电缆槽轮
锁紧组件的安装
锁紧组件已涂上少许油脂，即可使用。T，F ax，p W和p N的值适用于交货状态下的锁定组件。
表面处理
对于轴和轮毂孔R a = 3,2μm
公差范围
我们建议以下安装公差
轴：k9-h9; 花鼓：N9-H9
Max。容许轴：k11-h11; 花鼓：N11-H11
为避免壁厚较厚的止推环过度变形，锁定组件应尽可能对称地位于轴和轮毂孔之间。如果轴小于标称d，则孔应同样超过标称D，反之亦然。同心度质量由轴和毂之间的直接定心确定。
几个锁紧组件RfN 7012的布置
如果要安装多个锁定组件，则当锁定组件位于4·L的距离内时，可以添加表格的传输值。
螺丝拧紧扭矩的变化
锁定组件配有12.9级螺钉。可以减小螺钉的拧紧扭矩。通过将T A值乘以0.5 得到低的允许螺钉拧紧扭矩。T，T A，F ax，p W和p N之间存在近似线性关系。
辅助螺纹
为了便于拆卸，前止推环有辅助螺纹。
RINGFEDER RFN7012系列涨紧套型号大全：
RFN7012汉19达森47
RFN7012汉20达森47
RFN7012汉22达森47
RFN7012汉24达森50
RFN7012汉25达森50
RFN7012汉28达森55
RFN7012汉30达森55
RFN7012汉32达森60
RFN7012汉35达森60
RFN7012汉38达森65
RFN7012汉40达森65
RFN7012汉42达森75
RFN7012汉45达森75
RFN7012汉48达森80
RFN7012汉50达森80
RFN7012汉55达森85
RFN7012汉60达森90
RFN7012汉65达森95
RFN7012汉70达森110
RFN8006 25x30
25x30 RFN8006
RFN8006 28x32
28x32 RFN8006
RFN8006 30x35
30x35 RFN8006
RFN8006 32x36
32x36 RFN8006
RFN8006 35x40
35x40 RFN8006
RFN8006 36x42
36x42 RFN8006
RFN8006 38x44
38x44 RFN8006
RFN8006 40x45
40x45 RFN8006
RFN8006 42x48
42x48 RFN8006
RFN8006 45x52
45x52 RFN8006
RFN8006 48x55
48x55 RFN8006
RFN8006 50x57
50x57 RFN8006
RFN8006 55x62
55x62 RFN8006
RFN8006 56x64
56x64 RFN8006
RFN8006 60x68
60x68 RFN8006
RFN8006 63x71
63x71 RFN8006
RFN8006 65x73
65x73 RFN8006
RFN8006 70x79
70x79 RFN8006
RFN8006 71x80
71x80 RFN8006
RFN8006 75x84
75x84 RFN8006
RFN8006 80x91
80x91 RFN8006
RFN8006 85x96
85x96 RFN8006
RFN8006 90x101
90x101 RFN8006
RFN8006 95x106
95x106 RFN8006
RFN8006 100x114
100x114 RFN8006
RFN8006 110x124
110x124 RFN8006
RFN8006 120x134
120x134 RFN8006
RFN8006 130x148
130x148 RFN8006
RFN8006 140x158
140x158 RFN8006
RFN8006 150x168
150x168 RFN8006
RFN8006 160x178
160x178 RFN8006
RFN8006 170x191
170x191 RFN8006
RFN8006 180x201
180x201 RFN8006
RFN8006 190x211
190x211 RFN8006
RFN8006 200x224
200x224 RFN8006
RFN8006 210x234
210x234 RFN8006
RFN8006 220x244
220x244 RFN8006
RFN8006 230x257
230x257 RFN8006
RFN8006 240x267
240x267 RFN8006
RFN8006 250x280
250x280 RFN8006
RFN8006 260x290
260x290 RFN8006
RFN8006 270x300
270x300 RFN8006
RFN8006 280x313
280x313 RFN8006
RFN8006 290x323
290x323 RFN8006
RFN8006 300x333
300x333 RFN8006
RFN8006 320x360
320x360 RFN8006
RFN8006 340x380
340x380 RFN8006
RFN8006 360x400
360x400 RFN8006
RFN8006 380x420
380x420 RFN8006
RFN8006 400x440
400x440 RFN8006
RFN8006 420x460
420x460 RFN8006
RFN8006 440x480
440x480 RFN7012
RFN7012 19x47
19x47 RFN7012
RFN7012 20x47
20x47 RFN7012
RFN7012 22x47
22x47 RFN7012
RFN7012 24x50
24x50 RFN7012
RFN7012 25x50
25x50 RFN7012
RFN7012 28x55
28x55 RFN7012
RFN7012 30x55
30x55 RFN7012
RFN7012 32x60
32x60 RFN7012
RFN7012 35x60
35x60 RFN7012
RFN7012 38x65
38x65 RFN7012
RFN7012 40x65
40x65 RFN7012
RFN7012 42x75
42x75 RFN7012
RFN7012 45x75
45x75 RFN7012
RFN7012 48x80
48x80 RFN7012
RFN7012 50x80
50x80 RFN7012
RFN7012 55x85
55x85 RFN7012
RFN7012 60x90
60x90 RFN7012
RFN7012 65x95
65x95 RFN7012
RFN7012 70x110
70x110 RFN7012
RFN7012 75x115
75x115 RFN7012
RFN7012 80x120
80x120 RFN7012
RFN7012 85x125
85x125 RFN7012
RFN7012 90x130
90x130 RFN7012
RFN7012 95x135
95x135 RFN7012
RFN7012 100x145
100x145 RFN7012
RFN7012 110x155
110x155 RFN7012
RFN7012 120x165
120x165 RFN7012
RFN7012 130x180
130x180 RFN7012
RFN7012 140x190
140x190 RFN7012
RFN7012 150x200
150x200 RFN7012
RFN7012 160x210
160x210 RFN7012
RFN7012 170x225
170x225 RFN7012
RFN7012 180x235
180x235 RFN7012
RFN7012 190x250
190x250 RFN7012
RFN7012 200x260
200x260 RFN7012
RFN7012 220x285
220x285 RFN7012
RFN7012 240x305
240x305 RFN7012
RFN7012 260x325
260x325 RFN7012
RFN7012 280x355
280x355 RFN7012
RFN7012 300x375
300x375 RFN7012
RFN7012 320x405
320x405 RFN7012
RFN7012 340x425
340x425 RFN7012
RFN7012 360x455
360x455 RFN7012
RFN7012 380x475
380x475 RFN7012
RFN7012 400x495
400x495 RFN7012
RFN7012 420x515
420x515 RFN7012
RFN7012 440x545
440x545 RFN7012
RFN7012 460x565
460x565 RFN7012
RFN7012 480x585
480x585 RFN7012
RFN7012 500x605
500x605 RFN7014
RFN7014 70x120
70x120 RFN7014
RFN7014 80x130
80x130 RFN7014
RFN7014 90x140
90x140 RFN7014
RFN7014 100x160
100x160 RFN7014
RFN7014 110x170
110x170 RFN7014
RFN7014 120x180
120x180 RFN7014
RFN7014 130x190
130x190 RFN7014
RFN7014 140x200
140x200 RFN7014
RFN7014 150x210
150x210 RFN7014
RFN7014 160x230
160x230 RFN7014
RFN7014 170x240
170x240 RFN7014
RFN7014 180x250
180x250 RFN7014
RFN7014 190x260
190x260 RFN7014
RFN7014 200x270
200x270 RFN7014
RFN7014 220x300
220x300 RFN7014
RFN7014 240x320
240x320 RFN7014
RFN7014 260x340
260x340 RFN7014
RFN7014 280x370
280x370 RFN7014
RFN7014 300x390
300x390 RFN7013.1
RFN7013.1 20x47
20x47 RFN7013.1
RFN7013.1 22x47
22x47 RFN7013.1
RFN7013.1 24x50
24x50 RFN7013.1
RFN7013.1 25x50
25x50 RFN7013.1
RFN7013.1 28x55
28x55 RFN7013.1
RFN7013.1 30x55
30x55 RFN7013.1
RFN7013.1 32x60
32x60 RFN7013.1
RFN7013.1 35x60
35x60 RFN7013.1
RFN7013.1 38x65
38x65 RFN7013.1
RFN7013.1 40x65
40x65 RFN7013.1
RFN7013.1 42x75
42x75 RFN7013.1
RFN7013.1 45x75
45x75 RFN7013.1
RFN7013.1 48x80
48x80 RFN7013.1
RFN7013.1 50x80
50x80 RFN7013.1
RFN7013.1 55x85
55x85 RFN7013.1
RFN7013.1 60x90
60x90 RFN7013.1
RFN7013.1 65x95
65x95 RFN7013.1
RFN7013.1 70x110
70x110 RFN7013.1
RFN7013.1 75x115
75x115 RFN7013.1
RFN7013.1 80x120
80x120 RFN7013.1
RFN7013.1 85x125
85x125 RFN7013.1
RFN7013.1 90x130
90x130 RFN7013.1
RFN7013.1 95x135
95x135 RFN7013.1
RFN7013.1 100x145
100x145 RFN7013.1
RFN7013.1 110x155
110x155 RFN7013.1
RFN7013.1 120x165
120x165 RFN7013.1
RFN7013.1 130x180
130x180 RFN7013.1
RFN7013.1 140x190
140x190 RFN7013.1
RFN7013.1 150x200
RINGFEDER锁紧组件RfN 7012简介
弯矩和径向载荷 –可以传递组合载荷。（请联系我们的技术部门寻求帮助）。
易于安装 – RfN 7012锁定组件可以弥合较大的间隙，而不会损失传输值。
污染风险低 –在拧紧过程中，将设备和连接器的功能表面压在一起，从而产生不允许污染进入的表面压力。
无磨损 -锁紧组件RfN 7012无需在轴和轮毂上移动部件即可工作，从而避免了磨料磨损和间隙。因此，RfN 7012可以反复夹紧和释放。
