co-ax同轴阀MK / FK 32 DR-阀门-产品型号-北京汉达森机械技术有限公司

品牌co-ax	有效期至长期有效	最后更新2020-06-08 15:21
浏览次数0

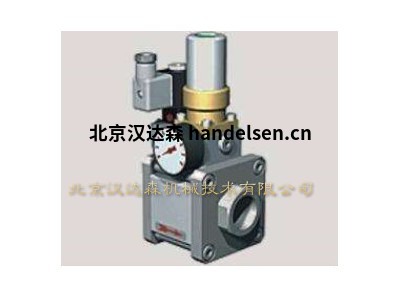

co-ax同轴阀MK / FK 32 DR

吴亚男
QQ：2853369884

手机：17718583804
电话：010-64714988-212
传真：010-64714988-668
邮件：tk2@handelsen.cn

吴亚男邮箱：tk2@handelsen.cn电话：010-64714988-212

co-ax同轴阀MK / FK 32 DR

特性

端口螺纹 G 1 1/4 - G 1 1/2

法兰 PN 16/40

功能 NC

压力范围 0-16 / 0-40 bar

A B max. 40 bar

B A max. 16 bar

A C max. 40 bar

C A max. 16 bar

KV值 A B 14,1 m³/h

A C 8,9 m³/h

介质气态液态高粘稠凝胶状高污染

流向见压力范围

开关周期 120 1/min

开关时间打开 440 ms

关闭 250 ms

介质温度 DC -20 °C — +100 °C

AC -20 °C — +100 °C

环境温度 DC -20 °C — +80 °C

AC -20 °C — +80 °C

重量 MK 18,0 kg

FK 22,0 kg

标称电压 Un 24 V DC

Un 230 V 40-60 Hz AC

驱动 DC 直流电磁铁

AC 内置式整流器的直流电磁铁

绝缘等级 H 180 °C

防护等级 IP65

负载率 ED 100%

连接按DIN EN175301-803标准的插头, 形式A 4个位置X90°, 电线直径 6-8 mm

阀门的设计是基于介质和工况的要求.这些因素可能导致设计、密封材料和特性与通用参数表上的规格有所不同.
